AEROSPACE PRODUCTS

Mission, Vision & Values

aerospace-mission

Mission

To provide precision engineering and technical products and solutions that are responsive to our clients’ needs in an innovative, cost-effective and professional manner with the highest quality


Vision

To build trusted, high-quality products and solutions in the Precision Engineering Industry that enhance the competitiveness of our clientele and improve the quality of life for people everywhere.


Values

Inclusion & Collaboration - Learning, Development & Digitization - Innovation, Communication & Transparency, People Centered, Customer Focused & Growth Oriented - Pride & Ownership - Engineering Excellence

PENNAR AEROSPACE SYNOPSIS

  • Established: 1975 evolved in the Fields of General Engineering, Automobile, Railways, Energy, Infrastructure , Building & Construction and Diversified to Aerospace segment in 2018

  • Certification: AS9100 D

  • Listed: Trade India's list of verified sellers offering supreme quality.

  • Capabilities: 3 Axis and 5 Axis Machining up to 9 Meters which can cater high precision components, State-of-the-art Carl Zeiss CMM, Wire cut, EDM alongside an assembly and conventional Setup. Materials Apart from Aluminium and Steel, we are also pioneers in cutting exotic materials like Titanium, Inconel and Tungsten.

  • Rendering: In the field of Aerospace, Defence and Space

  • Location: HYDERABAD - INDIA , VILLEBRET- FRANCE


Patancheru location

Sreeram Nagar Colony, Patancheru, Hyderabad, Telangana 502319

France location

87 Rue ZA Champ Noyer – 03310 VILLEBRET - FRANCE

ORGANOGRAM

organogram

CAPITAL OUTLAY

milling 5 axis

MILLING 5 Axis

MILLING 3+1 Axis

MILLING 3+1 Axis

MILLING 3 Axis

MILLING 3 Axis

Turn Mill

Turn Mill

Wire Cut

Wire Cut

EDM

EDM


9 METER 3 +2 AXIS MILLING MACHINE

9 METER 3 +2 AXIS MILLING MACHINE
Make Yong Ju Precision Technology
Model 5 Axis Machine Model SD3690
Axis 3 + 2 Axis
Controller Fanuc 0i-MF
Travel X-Axis 9000
Y-Axis 3600
Z-Axis 1400
Table Capacity 25000 KG
Max Spindel Speed 10000
Position Accuracy 15un Full Length

CAPABILITIES

Operation Milling Milling Milling Milling Milling Milling Turn Mill Turning EDM Wire Cut
Make YJ Precision Doosan Doosan Jyothi Batliboi Batliboi Doosan Jyoti Electronica Hitech Electronica Hitech
Model SD 3690 VC 630 / 5AX DNM 4500 VMC 1260 DM Chetak 110C Chetak 80C LYNX 2100LYB DX 200 5A ELTECH D550 G53S
Axis 3 + 2 5 3 + 1 3 + 1 3 + 1 3 3 2 3 3 + 2
Controller Fanuc 0i-MF Siemens S840D Siemens S828D Siemens S828D Mitsubishi M80A Mitsubishi M80A Siemens S828D Siemens
Travel in MM
X-Axis
Y-Axis
Z-Axis
9000 650 800 1220 1100 800 Ø300 200 550 500
3600 765 450 600 600 510 450 300
1400 520 510 610 560 510 510 500 250 300
Spindle Speed in RPM 10000 2000 12000 10000 8000 8000 4500 3500
Accuracy 20 µ 6-8 µ 6-8 µ 6-10 µ 6-10 µ 6-10 µ 6-8 µ 8 µ 0.6 µ Ra 0.6 µ Ra
No of M/c's 1 1 1 1 1 4 1 1 1 1

Conventional Setup

  • Band saw Cutting
  • Milling with DRO
  • Lathe
  • Radial Drilling
  • Jig Boring
  • Cylindrical grinding
  • Surface Grinding
Operation Milling Milling Turning Turning
Make YCM HARD FORD SKT HASS
Model TV1558 HB2T20 SKT-300M SL-40
Axis 3 3 2 2
Contoller FANUC FANUC FANUC FANUC
Travel in MM
X-Axis
Y-Axis
Z-Axis
1500 2000 335 1200
860 1200
750 750 500 800
Spindle Speed in RPM 10000 1000 3000 2400
Accuracy 10 to 15 µ 10 to 20 µ 0.02 0.20
No of M/c's 1 1 1 1

KEY INSPECTION CAPABILITIES

Operation CMM Profile Projector Digital Height Gauge 2 D Height Gauge
Make Carl Ziess Optomech TRIMOS Mitutoyo
Model Contura G2 VPPME 3020 V7 192-632
SOFTWARE CALYPSO Easson
Table Size in MM
X-Axis
Y-Axis
Z-Axis
1000 300
1200 200
600 45° 0 - 600 mm 0 - 700 mm
Accuracy 1.9 + L/300 1 µ 0.01 mm 0.01 mm

Inspection capabilities
Inspection capabilities

SHEET METAL CUTTING AND BENDING (Extended CAPABILITIES)

Operation Sheet Metal Cutting Sheet Metal Cutting Sheet Metal Cutting Sheet Metal Cutting Bending Bending
Make MESSER MESSER AJAN SLTL DURMAZLAR ENERGY MISSION
Type Plasma Plasma Plasma OXY Laser Press Brake Press Brake
Range in mm
Length
Width
Thickness
12500 12500 12000 12000 4000 4000 4000
3000 3000 2000 2000 2000
6 to 25 6 to 65 6 TO 25 6 TO 120 MM Upto 6 – SS Upto 8 - MS 10 MM X 4M Else upto 25 MM 6 MM
Capacity 260 Amp Power Source 300 Amp Power Source 260 Amp Power Source 260 Amp Power Source 2 KW Power Source 300 TON 150 TON

PRODUCTS



Aerospace products
Aerospace products
cut out edge
cut out edge
cut out edge
cut out edge
handles
stringers
locking bracket
wedge rear
SIDE FRAMES
SIDE covers
Mounting brackets

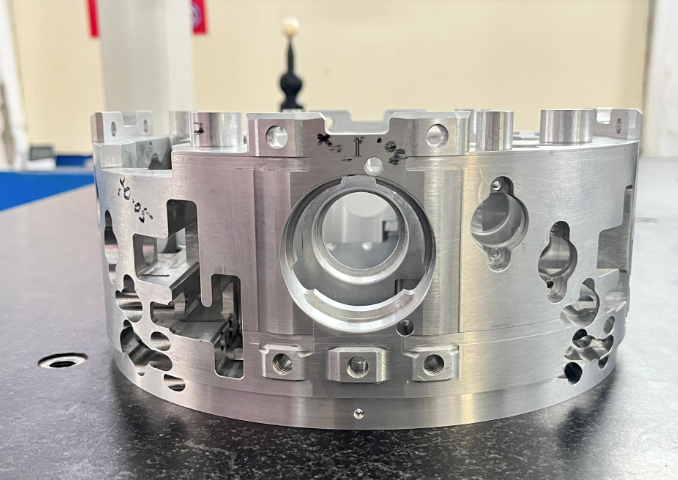

Mechanical components
Mechanical components
Mechanical components
interface-plate
interface-plate
booster-components
booster-components
booster-components
booster-components
wing-panel
composites-industry
composites-industry

NOZZLES

nozzles

FLAP

flap

WEDGES

wedges

BRACKETS

brackets

FLANGE

flange

RADIOACTIVE CAMERA BODY

radioactive-camera-body
radioactive-camera-body

BALANCE WEIGHTS

balance-weight
balance-weight
balance-weight
balance-weight

PENNAR AEROSPACE CERTIFICATIONS

Aerospace Division Quality Pennar Industries
Aerospace Division Quality Pennar Industries

PENNAR AEROSPACE CLIENTELE

HAL
DRDO
Ministry of Defence
godrej Aerospace
BrahMos
Bharat Dynamics
HUTCHINS
DAHER
Lauak
SimAir
Potez
Stelia Composites

Aerospace Strategy @ Pennar

Pennar Aerospace Strategy
